Product Brief Describtion：
MFP-2 series surface mount NTC temperature sensor is designed with a standard lug terminal structure and NTC thermistor element for accurate and reliable temperature measurement. The screw mounting design enables easy installation and stable attachment to various devices. With flexible customization options for dimensions, sensing elements, and specifications, it is widely used in refrigerators, HVAC systems, motors, projectors, and lithium battery thermal management applications.
Typical Application:
Refrigeration Temperature Monitoring
Ensure accurate temperature measurement in refrigerators, freezers, and cold chain systems to maintain stable cooling performance and protect temperature-sensitive products.
HVAC System Temperature Control
Provide reliable temperature sensing solutions for heating, ventilation, and air conditioning systems, enabling efficient climate control and energy management.
Motor Temperature Protection
Monitor motor operating temperatures in real time to prevent overheating, improve equipment reliability, and extend service life.
Lithium Battery Thermal Management
Deliver precise temperature detection for lithium battery packs, helping optimize thermal control and enhance battery safety and performance.
Electronic Equipment Temperature Detection
Support accurate temperature monitoring in electronic devices, control systems, and industrial equipment to ensure stable operation and prevent thermal failures.

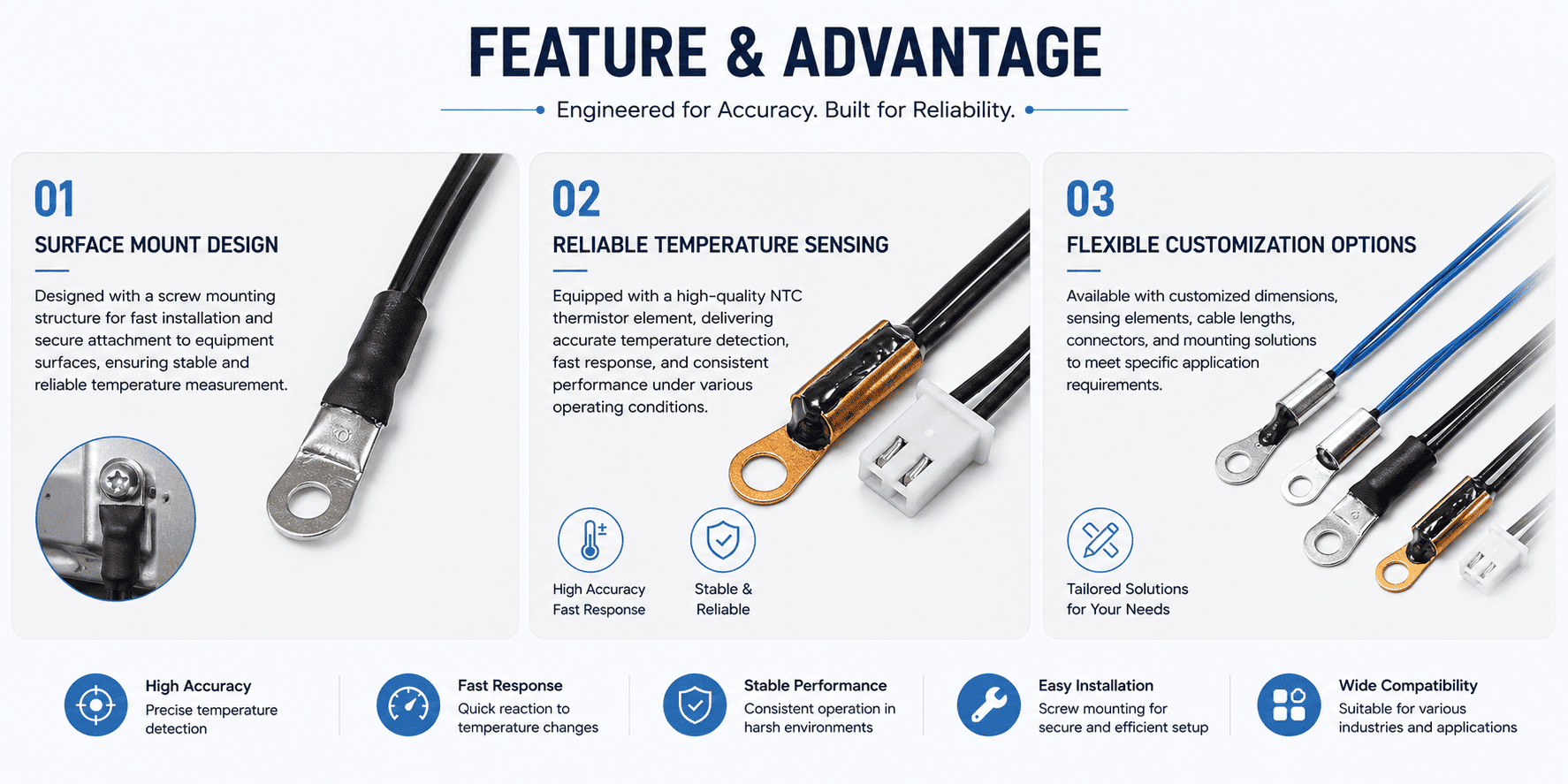

Feature & Advantage
Surface Mount Design
Designed with a screw mounting structure for fast installation and secure attachment to equipment surfaces, ensuring stable and reliable temperature measurement.
Reliable Temperature Sensing
Equipped with a high-quality NTC thermistor element, delivering accurate temperature detection, fast response, and consistent performance under various operating conditions.
Flexible Customization Options
Available with customized dimensions, sensing elements, cable lengths, connectors, and mounting solutions to meet specific application requirements.
Key Parameters
Sensing Element | NTC Thermistor various R and B value on request |
Temperature range | -30°C to +150°C |
Response time | Water (0.4m/s) T0.63 ≤ 30 s |
Dissipation Factor | ≥ 2.5mW/°C |
Long-term stability | Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C) |
Dielectric Strength | 1500VAC |
Insulation Resistance | ≥100MΩ 500VDC |
Size Drawing（Typical Standard Size）
